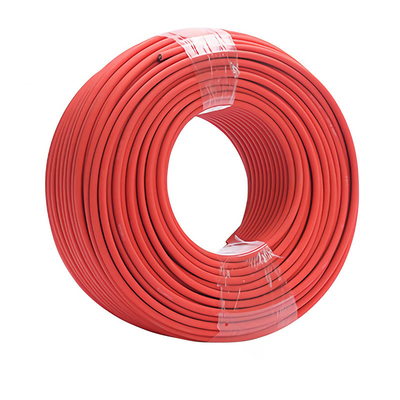

50A 6mm² DC Solar Cable H1Z2Z2-K TUV EN50618:2014

Name: 50A 6mm² DC Solar Cable H1Z2Z2-K TUV EN50618:2014
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K
Availability: InStock

Rincian Produk

Sertifikasi: TUV & CE & ISO9001 & CQC & CPR & BCA

Model Number: H1Z2Z2-K

Ketentuan Pembayaran & Pengiriman

Minimum Order Quantity: 500

Harga: negotiable

Packaging Details: 100m/roll

Delivery Time: 7-25days

Syarat-syarat pembayaran: T/t, l/c saat terlihat

Supply Ability: 10000000

Dapatkan Harga Terbaik

Hubungi sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    6mm² DC solar cable with TUV certification, 50A solar cable H1Z2Z2-K compliant, EN50618:2014 certified DC solar cable


Peringkat saat ini:	50a	Standar:	TUV EN50618: 2014
Spesifikasi kabel:	H1Z2Z2-K 1x6mm2	struktur:	84/0.28mm
Bahan isolasi:	Xlpe	Ukuran konduktor:	6mm²
Kabel OD:	6.1mm	Jumlah konduktor:	1

Peringkat saat ini:	50a
Standar:	TUV EN50618: 2014
Spesifikasi kabel:	H1Z2Z2-K 1x6mm2
struktur:	84/0.28mm
Bahan isolasi:	Xlpe
Ukuran konduktor:	6mm²
Kabel OD:	6.1mm
Jumlah konduktor:	1

Deskripsi

50A 6mm² DC Solar Cable H1Z2Z2-K TUV EN50618:2014

Temperature Rating -40°C To 90°C Solar Direct Current Cable H1Z2Z2-K 1x6mm²

Product Description

The DC Solar Cable is a high-quality photovoltaic wiring solution designed for solar power systems. Featuring a 84/0.28mm structure, this cable meets rigorous TUV EN50618:2014 standards for reliability and safety in solar installations. Available in black or red, the 6mm² conductor cable offers exceptional flexibility for easy installation in both residential and commercial projects.

Key Features

Product Name: DC Solar Cable
Current Rating: 50A
Highly flexible design
Weight: 76kg/km
Wide temperature range: -40°C to 90°C
Compliant with TUV EN50618:2014 standard

Technical Specifications

Parameter	Value
Product Type	DC Solar Cable
Color Options	Black or Red
Standard	TUV EN50618:2014
Structure	84/0.28mm
Conductors	1
Packing	200m per roll
Temperature Rating	-40°C to 90°C
Conductor Size	6mm²
Current Rating	50A
Insulation Material	XLPE

Applications

This H1Z2Z2-K model solar cable is ideal for various photovoltaic systems, featuring XLPE insulation with resistance ≤3.39(Ω/KM) for reliable performance. Certified by TUV, CE, ISO9001, CQC, CPR, and BCA, it meets international standards for both residential and commercial solar installations.

Customization Options

Model Number: H1Z2Z2-K
Origin: China
Certifications: TUV, CE, ISO9001, CQC, CPR, BCA
Minimum Order: 500 units
Packing: 100m/roll
Delivery: 7-25 days
Payment: T/T, L/C at sight

Support & Services

Our technical support team provides comprehensive assistance including installation guidance, troubleshooting, and maintenance advice to ensure optimal performance of your solar system.

Packaging & Shipping

The cable is securely packaged in sturdy cardboard boxes with each 200m roll neatly coiled and secured. We work with reliable shipping partners and provide tracking information for all orders.

Frequently Asked Questions

What is the model number of the DC Solar Cable?

The model number is H1Z2Z2-K.

Where is the DC Solar Cable manufactured?

Manufactured in China to international standards.

What certifications does the cable have?

Certified by TUV, CE, ISO9001, CQC, CPR, and BCA.

What is the minimum order quantity?

Minimum order is 500 units.

How is pricing determined?

Pricing is negotiable based on order volume.
